Towing a trailer safely and dependably starts with a properly configured electrical system—and the heart of this system is the trailer wiring harness and connector. For many vehicle and trailer owners, navigating the variety of wire hues, pin layouts, and connector styles can feel daunting, especially when different trailers (from compact cargo units to large horse transporters) call for distinct setups. Picking the wrong wire gauge, misaligning a color-coded pin, or cutting corners on fitting can result in faulty lighting, non-operational brakes, and even hazardous towing scenarios on the road.
At Tirol, we specialize in manufacturing sturdy, industry-compliant trailer wiring and connectors engineered for all towing scenarios. This all-inclusive guide breaks down every vital detail of trailer wiring diagrams, connector categorization, color code benchmarks, professional fitting techniques, and key selection principles—all from a technical yet approachable viewpoint. Whether you’re outfitting a cargo trailer for weekend hauls, a camper for cross-country journeys, or a heavy-duty trailer for commercial use, this resource will arm you with the knowledge to wire and install your trailer connector like a pro, guaranteeing seamless compatibility and long-term performance.
Trailer wiring is far more than just hooking up lights—it’s the communication core between your towing vehicle and trailer, linking critical safety systems and ensuring adherence to road rules. A well-executed wiring setup achieves three core objectives that are non-negotiable for safe towing:
•
Establishes steady power for rear running lights, turn signals, and brake lights, making your trailer visible to other motorists in all conditions.
•
Activates and regulates electric/hydraulic trailer brakes (for medium and heavy-duty trailers), preventing brake failure and ensuring smooth, coordinated stopping with the towing vehicle.
•
Delivers auxiliary 12V power to onboard trailer components (e.g., camper fridges, LED work lamps) and powers reverse lights for better maneuverability when backing up.
Without proper wiring, you risk not just broken lights or non-functional brakes, but also electrical shorts, system damage, and even accidents caused by poor visibility or lost braking control. A clear, precise wiring diagram is your first step to avoiding these issues—it maps out pin positions, wire colors, and component links, removing guesswork and ensuring every wire serves its intended purpose.
Key Pre-Wiring Consideration: Axle Type & Brake Compatibility
Trailers are typically categorized by two axle types: single axle and tandem axle (dual axles). The core wiring for lighting and basic functions is the same for both, with the only variation being the wiring for brake systems (blue and white wires). For axles fitted with brakes, the brake wire must be fully connected to the corresponding connector pin; for brake-free axles, these brake wires can be left unconnected (but never cut or repositioned). A critical rule: never alter the factory pin position of any wire—color-coded wires are standardized for a reason, and misalignment will disable your trailer’s electrical system.
Even the most perfectly wired system will fail early if the harness is not routed and protected correctly. Trailer wiring is exposed to harsh road conditions: rain, snow, mud, road debris, and constant vibration—all of which can fray insulation, corrode connections, and break wires. Professional wire routing follows a few simple but essential principles to maximize durability:
•
Use protective conduit: Encase all wiring (especially along the trailer frame and tongue) in a heavy-duty plastic conduit. This rigid covering shields wires from abrasion, impact, and water seepage, and prevents damage to splice-in connections.
•
Secure at regular intervals: Fasten the wired conduit to the trailer frame with UV-resistant cable ties or metal wire clips every 12–18 inches. Avoid loose, hanging wiring that can catch on debris or flex excessively during towing.
•
Avoid high-stress areas: Route wiring away from trailer hitches, axle suspension parts, and sharp metal edges. For wiring that passes through frame holes, use rubber grommets to line the hole and prevent insulation wear.
•
Leave minimal slack: Allow just enough slack at the connector end to accommodate trailer turning and articulation—too much slack leads to dragging, too little causes tension and wire breakage at connection points.
•
Seal all splices: If splice-in connections are needed (e.g., for adding extra lights), use heat-shrink adhesive tubing to create a waterproof seal. Never rely on electrical tape alone for permanent splices—it degrades quickly in outdoor conditions.
Trailer connectors are grouped by pin count (4-pin to 7-pin), with each type designed for a specific towing load and electrical demand. The pin count directly relates to the number of functions the connector can support—from basic lighting for small trailers to full brake control and auxiliary power for heavy-duty units. All connectors use standardized color coding for pins, and while flat blade pins are the industry norm (most common and easy to use), round pins are available for older trailer/vehicle setups (rarely used today).
Below is the Tirol industry-standard breakdown of each connector type, including pin color codes, core functions, and ideal trailer/vehicle uses—note: this pin numbering and color code is the global standard for flat blade connectors, adopted by Tirol for all our wiring products.
The 4-pin connector is the most widely used option for brake-free, light-duty trailers—it supports only the essential lighting functions, with a simple, lightweight design that makes installation and use effortless.
Ideal for: Small cargo trailers, campers, off-road vehicle trailers, small boat trailers (brake-free), passenger-carrying light trailers.
| Connector Pin | Wire Color | Core Function |
| 1 | White | Primary Ground (negative connection for all electrical systems) |
| 2 | Brown | Powers all rear running/taillights |
| 3 | Yellow | Left turn signal + left brake light (synchronized function) |
| 4 | Green | Right turn signal + right brake light (synchronized function) |
3.2 5-Pin Connector: Basic Lighting + Brake Disable for Medium-Duty
The 5-pin connector builds on the 4-pin design with an additional blue pin for brake control—the critical upgrade for trailers with basic electric/hydraulic brakes. Its fifth pin deactivates trailer brakes when the towing vehicle is in reverse, preventing brake lockup during backing up (a non-negotiable safety feature for braked trailers).
Ideal for: Minivans (towing medium-duty trailers), small braked boat trailers, light utility trailers with electric brakes.
| Connector Pin | Wire Color | Core Function |
| 1-4 | White/Brown/Yellow/Green | Same as 4-pin connector (ground, running lights, left/right turn/brake) |
| 5 | Blue | Deactivates electric/hydraulic trailer brakes in reverse |
The 6-pin connector is the top choice for medium-heavy duty trailers with onboard electrical components—it adds a dedicated brake controller pin and a 12V power pin to the 4-pin core, supporting brake operation and low-power auxiliary devices.
Ideal for: Horse transporters, campervans, small coaches, braked utility trailers with onboard lights/accessories.
| Connector Pin | Wire Color | Core Function |
| 1-4 | White/Brown/Yellow/Green | Same as 4-pin connector (ground, running lights, left/right turn/brake) |
| 5 | Blue | Trailer brake controller (primary power for electric brake operation) |
| 6 | Red | 12V auxiliary power (for low-power trailer components: interior lights, small fans) |
The 7-pin connector is the most comprehensive option for heavy-duty towing, supporting every essential and advanced function for large trailers with complex electrical systems. It includes all functions of 4/5/6-pin connectors, plus dedicated reverse lights and high-capacity 12V auxiliary power—making it the standard for commercial and heavy recreational towing. A key benefit: unused pins can be left blank (no wiring required) for smaller trailers, making the 7-pin a versatile universal option for any towing setup.
Ideal for: Trucks, SUVs, large braked trailers, commercial cargo trailers, RVs, large boat trailers, horse trailers with onboard AC/DC systems.
| Connector Pin | Wire Color | Core Function |
| 1-4 | White/Brown/Yellow/Green | Same as 4-pin connector (ground, running lights, left/right turn/brake) |
| 5 | Blue | Deactivates electric/hydraulic trailer brakes in reverse |
| 6 | Red | 12V high-capacity auxiliary power (for all trailer electrical components: refrigerators, LED work lamps, battery charging) |
| 7 | Purple | Reverse tail lights (dedicated power for backup visibility) |
Quick Reference: Vehicle Type → Recommended Connector
To simplify selection, Tirol has mapped the most compatible connector type to common towing vehicle categories—based on typical towing capacity and trailer demand:
| Towing Vehicle Type | Recommended Tirol Connector |
| Truck / Full-Size SUV | 7-pin (heavy-duty all-in-one) |
| Minivan / Compact SUV | 5-pin (medium-duty brake control) |
| Sedan / Small Crossover | 4-pin (light-duty basic lighting) |
12/14-gauge wire: Mandatory for all brake-related wiring (blue wires) and high-capacity 12V auxiliary power (red wires in 7-pin connectors). Thicker gauge handles the high current of brake systems and heavy-duty electrical components without overheating.
16-gauge wire: Ideal for all lighting wiring (white/brown/yellow/green/purple wires). This gauge balances power delivery and flexibility, and is the standard for LED trailer lights (the most energy-efficient and durable option).
Key note: For low-power incandescent lights, a smaller 18-gauge wire may work, but Tirol recommends 16-gauge for all lighting—even low-power—for future-proofing (e.g., upgrading to high-power LEDs) and consistent performance.

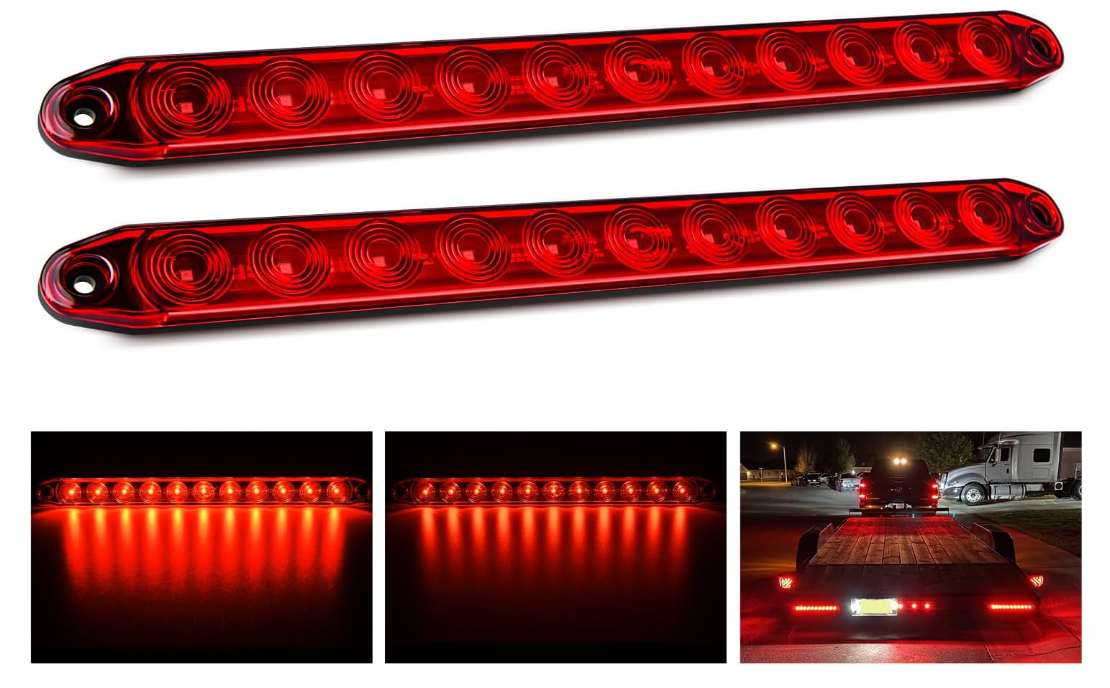

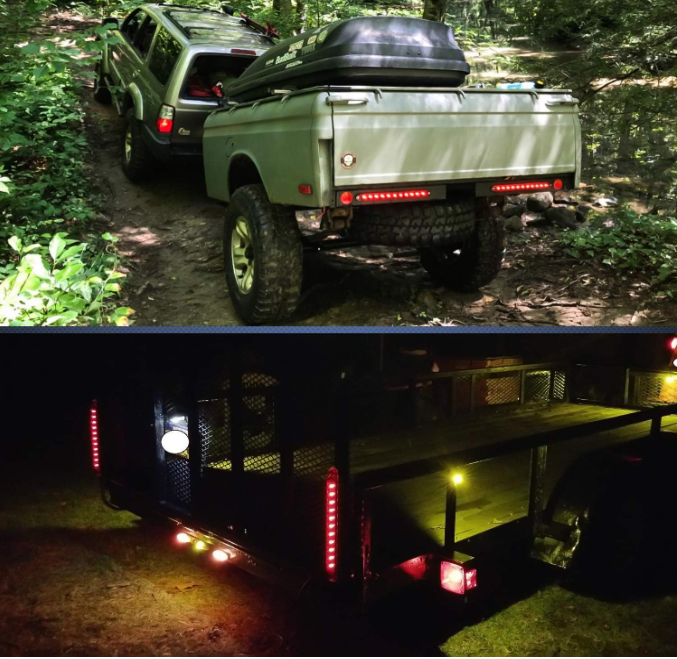

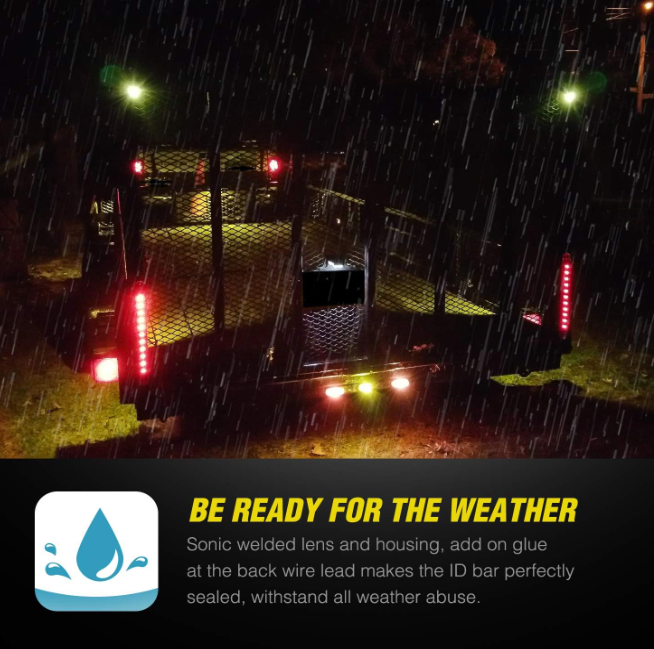

Sealed LED lights (preferred): LED lights use 80% less power than incandescent bulbs, last 50,000+ hours, and are resistant to vibration (a common cause of incandescent bulb failure). Sealed housing is non-negotiable—it prevents water intrusion during rain, washing, or submersion (e.g., boat trailers).
Incandescent lights (budget option): If using incandescent lights, choose waterproof sealed units and replace bulbs regularly (they are prone to burnout from vibration).
All lights: Ensure compliance with local road regulations (e.g., minimum brightness, mounting height) and match light power to wire gauge (high-power LEDs require 16-gauge wire at minimum).
White (Ground): The backbone of the system—all electrical components connect to the white ground wire. It is the negative connection, and must be attached to a clean, unpainted metal surface on the trailer frame (no rust or paint) for optimal conductivity. Use a thicker 12-gauge white wire for braked/heavy-duty trailers to avoid electrical shorts.
Brown (Running Lights): Powers all constant-on lights (taillights, side marker lights, clearance lights). This wire is always live when the towing vehicle’s headlights are on, and connects to every lighting component that needs constant power.
Yellow/Green (Turn/Brake Lights): Synchronized function—these wires power turn signals and brake lights simultaneously (a standard design for trailer wiring). Yellow = left side, Green = right side; no cross-connection is allowed (e.g., green to left light will reverse your signals).
Blue (Brake Control/Disable): Exclusively for brake systems—either deactivates brakes in reverse (5-pin) or powers the brake controller (6-pin). Always 12/14-gauge for high current handling.
Red (12V Auxiliary Power): Dedicated power for trailer electrical components—low-capacity (6-pin) for small devices, high-capacity (7-pin) for heavy-duty components (camper fridges, battery charging). 12-gauge mandatory for 7-pin red wires.
Purple (Reverse Lights): Dedicated power for backup lights (7-pin only), activated when the towing vehicle is in reverse. 16-gauge is standard.
Custom Wiring Harness: Plugs directly into the vehicle’s rear taillight housing, draws power from the vehicle’s battery, and outputs a standard trailer connector (4/5/6/7-pin) at the hitch. 100% splice-free, 30-minute installation for most vehicles.
Custom Wiring Connectors: For vehicles with factory wiring sockets (no pre-installed harness). Simply plug the Tirol custom connector into the vehicle’s factory socket—this socket acts as the trailer wiring connection point, with no additional wiring required. Ideal for late-model trucks/SUVs with factory towing prep packages.
Mount the connector securely: Use a Tirol connector mounting bracket to attach the connector to the vehicle’s hitch or rear frame—avoid loose, hanging connectors that can be damaged by road debris.
Seal the ground connection: The white ground wire must be attached to a clean, unpainted metal surface on the vehicle/trailer frame. Scrape away paint/rust with a wire brush, and apply dielectric grease to the connection to prevent corrosion.
Test the system before towing: After installation, connect the trailer to the vehicle and test all functions: running lights, left/right turn signals, brake lights, reverse lights (7-pin), and brake control (5/6/7-pin). Use a multimeter to check for power at each pin if any function fails.
Route the harness to the hitch: Keep the wiring harness close to the vehicle’s frame, routed to the hitch ball (the standard connection point) with protective conduit and secure cable ties.
Apply dielectric grease to all connector pins and sockets before connecting—this waterproof grease repels water and dirt.
Use a Tirol waterproof dust cap on the connector when not in use (for both vehicle and trailer sides).
Keep the connector mounted above ground level (on the hitch/frame) to avoid mud/water splashes and contact with the road.
Always match your connector to your trailer’s weight and brake system—a 4-pin connector on a braked trailer is a safety hazard and a violation of most road regulations.
Inspect your trailer wiring and connector before every tow—check for frayed wires, corroded pins, and loose connections.
Use only Tirol industry-standard color-coded wiring and connectors—non-standard colors/pins lead to compatibility issues and dangerous towing situations.
For commercial towing or heavy-duty trailers, have your wiring/connector installation inspected by a Tirol certified technician to ensure compliance with local and national road regulations.
