For many vehicle owners, outfitting a boat trailer, ATV trailer, or utility trailer with a 4-wire connector can feel like a complex electrical task—especially if you’re not an experienced electrician. But rest assured: the 4-way flat connector, one of the most widely used towing electrical systems, is designed for simplicity and basic towing needs. This essential component establishes a reliable link between your towing vehicle and trailer, powering critical safety features like running lights, turn signals, and brake lights, plus a dedicated ground connection to ensure all systems function as intended.
This comprehensive guide breaks down everything you need to know about 4-wire trailer connectors, from core functionality and wiring procedures to comparisons with other connector types, professional installation best practices, and maintenance tips. Whether you’re setting up a new trailer or troubleshooting an existing system, this resource will equip you with the knowledge to tow safely and confidently.
The 4-wire trailer connector—commonly referred to as a 4-way flat connector—is the standard for light-duty trailers and passenger vehicles. Its popularity stems from its straightforward design, universal compatibility, and ability to handle basic lighting requirements, making it the go-to choice for utility trailers, small boat trailers, ATV trailers, and other lightweight towing setups.

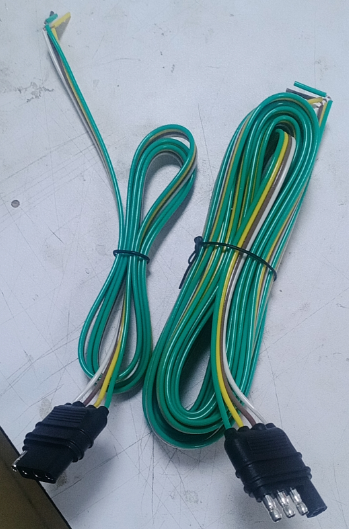

As the name suggests, the 4-way flat connector features four separate wires encased in a harness, each serving a distinct electrical function. The connector itself is a flat, rectangular plug with four pins arranged in a single row, allowing for easy alignment and secure connection. While less common, a 4-way round variant exists—its circular plug and pin configuration offers the same electrical functionality but is typically found on older vehicles or specialized trailers.
The 4-wire system is engineered to support four critical towing safety functions, with each wire dedicated to a specific task. This simplicity ensures reliable operation and easy troubleshooting:
•
Running Lights: Powered by the brown wire, running lights illuminate the rear and side markers of the trailer, making it visible to other drivers in low-light conditions or at night. This includes taillights and any auxiliary side marker lights installed on the trailer.
•
Turn Signals & Brake Lights (Right Side): The green wire controls the right turn signal and right brake light. When you activate the right turn signal or apply the brakes, this wire sends power to the corresponding lights on the trailer, matching the towing vehicle’s signals.
•
Turn Signals & Brake Lights (Left Side): The yellow wire operates the left turn signal and left brake light, mirroring the towing vehicle’s left-side signals for consistent communication with other motorists.
•
Ground Connection: The white wire establishes a common ground for the trailer’s entire electrical system. A proper ground is non-negotiable—without it, lights may flicker, fail to illuminate, or function intermittently. The ground wire should be securely attached to a clean, unpainted section of the trailer tongue or frame to ensure optimal conductivity.
For trailers with more complex needs—such as reverse lights, electric brakes, or auxiliary power—a 4-way flat connector will be insufficient. In these cases, upgrading to a 5-, 6-, or 7-wire connector is necessary, as outlined in Section 3.
Proper wiring of the 4-way flat connector on both the trailer and towing vehicle is critical for safe towing. Below is a detailed breakdown of wire color codes, trailer wiring steps, and vehicle harness installation options to ensure a reliable connection.
Uniform color coding is a hallmark of 4-way connectors, making it easy to match wires and avoid mistakes. The following color-to-function mapping applies to both flat and round 4-way connectors:
| Wire Color | Function |
|---|---|
| Green | Right turn signal / Right brake light |
| Yellow | Left turn signal / Left brake light |
| Brown | Running lights / Taillights / Side markers |
| White | Ground connection (trailer frame/tongue) |
Always verify the color code with your trailer’s manual or the connector manufacturer, as rare exceptions may exist—especially for older trailers.
Rewiring a trailer involves removing old, damaged components, running new wiring, and testing the system to ensure functionality. Follow these steps for a secure, long-lasting installation:
1.
Sketch a Wiring Diagram: Before starting, draw a simple diagram of your trailer’s lighting layout (taillights, side markers, ground point) to avoid confusion. This helps track wire routes and ensures all components are connected correctly.
2.
Remove Old Wiring & Lights: Disconnect the old harness from the trailer lights and frame. Cut away any frayed, corroded, or damaged wires, and remove old light fixtures that are cracked or non-functional.
3.
Lay Out the New Wiring Harness: Unroll the new 4-way harness along the trailer frame, ensuring it reaches from the tongue (where the connector mounts) to each light fixture. Leave a small amount of slack at the tongue to accommodate turns and trailer movement.
4.
Secure the Ground Wire: Attach the white ground wire to a clean, unpainted metal surface on the trailer tongue or frame using a ring terminal and bolt. Scrape away any rust or paint with a wire brush to ensure a solid, corrosion-free connection.
5.
Install Side Marker Lights: Connect the brown wire (running lights) to each side marker light. Mount the lights securely to the trailer frame, and insulate all connections with heat-shrink tubing or electrical tape to prevent moisture intrusion.
6.
Secure Wires to the Frame: Use zip ties or wire clips to fasten the harness to the trailer frame every 12–18 inches. Avoid routing wires near sharp edges, moving parts, or areas exposed to excessive road debris. Keep wires elevated to prevent dragging.
7.
Install Taillights: Connect the green wire to the right taillight (turn signal/brake function) and the yellow wire to the left taillight. Attach the brown wire to both taillights for running lights. Secure the taillights with the manufacturer’s hardware, ensuring they’re sealed against water.
8.
Test the System: Connect the trailer to your vehicle’s 4-way connector and activate all lights (running lights, left/right turn signals, brakes). Verify that each function works as intended. Use a multimeter to troubleshoot if lights flicker or fail to illuminate—this often indicates a loose ground or poor connection.
To tow safely, your vehicle must have a compatible trailer wiring harness that bridges its electrical system to the trailer’s 4-way connector. There are three primary installation methods, ranging from plug-and-play to splice-in solutions:
A custom wiring harness—also called a T-connector—is designed for specific vehicle makes and models, offering a plug-and-play installation with no splicing required. This is the preferred method for most drivers, as it minimizes risk and ensures compatibility.
Custom harnesses tap into the vehicle’s taillight wiring via factory-compatible plugs, converting the signal to a standard 4-way flat connector. Most kits (e.g., CURT) include all necessary components, such as electrical converters (for vehicles with separate turn/brake signals) and mounting hardware. Installation typically takes 30–60 minutes and requires no specialized tools.
If a custom harness is unavailable for your vehicle, a splice-in electrical converter is the next best option. This device connects directly to your vehicle’s taillight wiring, translating the vehicle’s electrical signal to match the trailer’s 4-way system.
Splice-in converters are ideal for older vehicles or models with unique wiring setups. However, they require cutting and splicing wires, so precision is key—use butt connectors and heat-shrink tubing for secure, waterproof connections. If you’re uncomfortable with electrical work, consult a professional installer.
If your vehicle or trailer’s existing 4-way connector is damaged (corroded pins, frayed wires), replace it with a splice-in plug (trailer side) or socket (vehicle side). These replacement parts are compatible with standard 4-way wiring and can restore functionality without rewiring the entire harness. Simply cut the old connector, strip the wire ends, and splice the new connector using crimp terminals or soldering for maximum durability.
Choosing the right trailer connector depends on your trailer’s size, weight, and electrical needs. While the 4-way flat is perfect for basic setups, larger or more complex trailers require advanced connectors. Below is a detailed comparison to help you select the right option.
Despite their different physical designs, 4-way flat and round connectors offer identical electrical functionality—both use green, yellow, brown, and white wires for the same lighting and ground functions. The key differences lie in form factor and application:
•
4-Way Flat: The most common type, featuring a rectangular plug with inline pins. It’s lightweight, easy to connect, and standard on most passenger vehicles and light-duty trailers.
•
4-Way Round: A circular plug with pins arranged in a circle. Less prevalent today, it’s often found on older trailers, agricultural equipment, or specialized towing setups. Adapters are available to convert between flat and round 4-way connectors.
The 5-way flat connector builds on the 4-way system by adding a fifth wire (blue) for reverse lights. This is ideal for trailers equipped with reverse lights, which enhance visibility and safety when backing up (e.g., boat trailers with submersible lights or utility trailers with rear work lights).
While the 4-way flat suffices for basic lighting, the 5-way is a logical upgrade for trailers with reverse lights. It remains simple to install and cost-effective, making it popular for medium-duty trailers.
The 6-wire connector is designed for trailers with advanced electrical needs, adding two critical functions beyond the 4-way flat: electric brakes (blue wire) and a 12V auxiliary power lead (red/black wire). The auxiliary power wire can charge a trailer battery, power interior lights, or operate onboard accessories (e.g., RV refrigerators).
This connector is essential for larger trailers (e.g., horse trailers, small RVs) that require electric brakes for safe stopping. Unlike the 4-way flat, it requires additional components like a brake controller in the towing vehicle. The 6-wire system is more complex but necessary for heavy-duty towing.
The 7-wire connector is the most comprehensive towing electrical system, supporting all functions of the 4-way, 5-way, and 6-way connectors—plus additional versatility. It’s available in three variants (RV Blade 7-Pin Traditional, RV Blade 7-Pin SAE, and Round 7-Pin), each with slightly different wire color coding but identical core functionality:
•
Running lights, turn signals, brake lights, and ground (same as 4-way flat)
•
Reverse lights (same as 5-way flat)
•
Electric brakes and 12V auxiliary power (same as 6-way connector)
The 7-wire connector is standard for heavy-duty trailers, large RVs, and boat trailers with complex systems (e.g., hydraulic brakes, onboard generators). While it offers maximum versatility, it’s overkill for light-duty trailers where a 4-way flat connector is sufficient.
Proper care and installation of your 4-way connector will extend its lifespan and prevent costly breakdowns. Follow these professional tips to ensure reliable performance for years to come.
•
Secure Wiring Properly: Keep harnesses elevated and fastened to the trailer frame with zip ties or clips. Avoid pinching wires between the trailer tongue and hitch, and leave enough slack to accommodate turns without stretching or pulling connections.
•
Ensure Full Connector Engagement: Push the plug and socket together until you hear a “click” to confirm a secure fit. Loose connections cause intermittent light failure, which is dangerous on the road.
•
Protect Against Corrosion: Apply dielectric grease to the connector pins and sockets before connecting. This waterproof grease repels moisture, dirt, and rust, preserving conductivity.
•
Avoid Heat & Sharp Edges: Route wires away from exhaust pipes, brakes, and sharp metal edges. Use wire loom to protect harnesses from abrasion and heat damage.
•
Store Harnesses Indoors: When not in use, store the vehicle-side harness in the trunk or cargo area to protect it from road debris, rain, and extreme temperatures.
•
Use Dust Covers: Install dust caps on both the vehicle and trailer connectors to keep out dirt, moisture, and insects. This is one of the simplest ways to prevent corrosion.
•
Keep Connectors Off the Ground: Avoid dragging or resting the connector on the ground, as this can damage pins and introduce debris into the socket.
Perform regular inspections to catch issues early. Aim to check your 4-way connector before each towing trip and thoroughly service it every 6 months:
•
Clean Pins & Sockets: Use a wire brush or electrical contact cleaner to remove corrosion, dirt, or grime from the connector pins. Corroded pins are the most common cause of lighting failures.
•
Inspect Wiring for Damage: Look for frayed insulation, cuts, or loose connections. Repair damaged wires with heat-shrink tubing or replace the harness if damage is extensive.
•
Test Ground Connections: Verify that the white ground wire is securely attached to the trailer frame and free of rust. A poor ground is often mistaken for a faulty connector.
•
Replace Damaged Connectors: If pins are bent, broken, or heavily corroded, replace the connector immediately. Splice-in replacements are affordable and easy to install.
These accessories enhance the functionality and durability of your 4-way flat connector setup:
•
Dust Caps: Vehicle-side (e.g., CURT #58200) and trailer-side (e.g., CURT #58750) dust caps protect connectors from the elements when not in use.
•
Mounting Brackets: Brackets (e.g., CURT #58301) secure the connector to the trailer tongue or vehicle hitch, preventing movement and damage.
•
Magnetic Snap Adapters: These adapters simplify connecting and disconnecting the harness, using magnets to align and secure the plug—ideal for frequent towing.
•
Wire Loom & Zip Ties: Protect wiring from abrasion with flexible wire loom, and secure harnesses with UV-resistant zip ties for long-lasting hold.
Below are answers to the most common questions about 4-wire trailer connectors, helping you troubleshoot issues and make informed decisions.
The most common causes are a poor ground connection, corroded connector pins, or loose wiring. First, check the white ground wire on the trailer—ensure it’s attached to a clean, unpainted metal surface. Next, clean the connector pins with electrical cleaner and apply dielectric grease. If issues persist, use a multimeter to test for power at each wire—this will identify if the problem is with the vehicle’s harness or the trailer wiring.
No. 4-way flat connectors do not support electric brakes, which require a dedicated wire (typically blue) found in 6-way or 7-way connectors. To tow a trailer with electric brakes, you’ll need to upgrade to a 6-way or 7-way connector and install a brake controller in your vehicle.
Yes, if your vehicle has separate turn and brake signals (common in European vehicles or older American models). A converter merges the separate signals into a single wire for the trailer’s brake/turn functions, ensuring compatibility with the 4-way system. Most custom T-connectors include a built-in converter; splice-in kits require a standalone converter.
Use a 4-way to 7-way adapter (e.g., CURT #57187) for temporary needs, such as towing a larger trailer occasionally. For permanent use, install a 7-way connector harness, which requires running additional wires for electric brakes, reverse lights, and 12V auxiliary power. Consult a professional if you’re unfamiliar with heavy-duty wiring.
Most standard 4-way flat connectors are not fully waterproof—they’re water-resistant at best. For boat trailers or other applications where submersion is possible, use a marine-grade waterproof connector and apply dielectric grease to all connections. Consider upgrading to a sealed 5-way or 7-way marine connector for maximum protection.
The 4-way flat connector itself doesn’t limit towing weight—it’s the towing vehicle’s capacity and trailer type that matter. However, 4-way connectors are designed for light-duty trailers (typically under 2,000 lbs GTW) with basic lighting. Heavier trailers require electric brakes and a 6-way/7-way connector, which are paired with higher towing capacities.
Most DIYers can install a custom T-connector (plug-and-play) with minimal tools and experience. Splice-in converters or full harness rewiring may require more electrical knowledge. If you’re uncomfortable cutting wires, testing circuits, or troubleshooting, hire a professional installer to avoid mistakes that could lead to safety hazards.
Final Thoughts: Safe Towing Starts with a Reliable Connection
A properly installed and maintained 4-way flat connector is the backbone of safe towing for light-duty trailers. By understanding its functionality, following correct wiring procedures, and adhering to maintenance best practices, you’ll ensure your trailer’s lights operate reliably—keeping you and other drivers safe on the road.
Whether you’re towing a utility trailer for home projects or a boat for weekend adventures, the knowledge in this guide will help you set up, troubleshoot, and maintain your 4-way system with confidence. Remember: when in doubt, consult your vehicle or trailer manual, or seek professional advice to address complex issues. Happy towing!
