Abstract

This white paper serves as a comprehensive technical resource regarding automotive fog light systems. Moving beyond basic replacement procedures, it delves into the operational principles, strategic importance in vehicle safety systems, detailed maintenance protocols, and a data-driven analysis of lighting technologies. The objective is to empower vehicle owners, automotive enthusiasts, and fleet managers with the knowledge required to make informed decisions about maintenance, troubleshooting, and technological upgrades, thereby optimizing visibility and safety under suboptimal driving conditions.

1. Introduction: The Strategic Role of Auxiliary Lighting in Active Safety

Automotive lighting systems constitute a critical component of active vehicle safety. While headlights are designed for general illumination, fog lights serve a specialized, tactical purpose. Engineered to project a wide, bar-shaped beam pattern with a sharp horizontal cutoff, fog lights illuminate the road surface and immediate roadside area without reflecting light back into the driver's eyes from water droplets or particulate matter in fog, heavy rain, snow, or dust storms.

The physiological and safety benefits are twofold:

1. Enhanced Driver Perception: By reducing glare backscatter, they improve the driver's contrast sensitivity, making lane markings, curbs, and potential roadside hazards more discernible.

2. Increased Vehicle Conspicuity: Their specific low-mounted position and color temperature (typically selective yellow or white) make the vehicle more detectable to oncoming and following traffic under reduced-visibility conditions.

Failure to maintain this system in optimal working condition represents a measurable compromise to vehicle safety. This guide provides a holistic framework for system management, from fundamental maintenance to advanced technological integration.

2. Technical Specifications and Pre-Service Diagnostics

Before initiating any service procedure, a proper diagnostic assessment is recommended.

• Identification: Consult the vehicle owner’s manual to determine the correct bulb size (e.g., H11, 9006, H8) and the system's wattage/voltage specifications.

• Initial Diagnostic Check: If a fog light is inoperative, first verify the functionality of the corresponding fuse and relay within the vehicle's junction box. A simple multimeter test at the connector behind the housing (with the switch activated) can confirm whether power is being delivered, isolating the fault to either the bulb/housing or the vehicle's electrical system.

3. Professional-Grade Fog Light Bulb Replacement Protocol

The following procedure outlines a meticulous, best-practice approach suitable for most modern vehicles.

3.1. Preparation and Safety

• Park the vehicle on a level, stable surface, engage the parking brake, and disconnect the negative terminal of the vehicle battery as a precaution against short circuits.

• Allow all lighting components to cool completely to avoid thermal injury.

• Gather tools: a set of precision screwdrivers, socket wrenches (commonly 8mm, 10mm), plastic pry tools to prevent trim damage, nitrile gloves (to prevent oils from skin contaminating the new bulb's glass or LED module), and optical-grade lens cleaner.

3.2. Accessing the Fog Light Assembly

Access methodologies vary significantly by vehicle make and model. Common approaches include:

• Direct Front Access: Removal of trim panels or grille sections from the front bumper.

• Wheel Arch Liner Access: Partial removal of the inner wheel well liner, often requiring steering wheel rotation to create workspace.

• Under-vehicle Access: Removal of engine underbody panels or splash shields.

Consult service literature for the specific vehicle to determine the recommended access point.

3.3. Component Removal and Handling

1. Locate the electrical connector at the rear of the fog light housing. Depress the integral locking tab and disconnect it.

2. For bulb-style units, rotate the bulb socket counter-clockwise (typically a quarter to half turn) to unlock it from the housing. Extract the socket and old bulb as a single assembly.

3. Critical Note: Avoid touching the glass envelope of new halogen bulbs with bare skin. Residual oils can create hot spots upon heating, leading to premature bulb failure.

3.4. Installation and Calibration

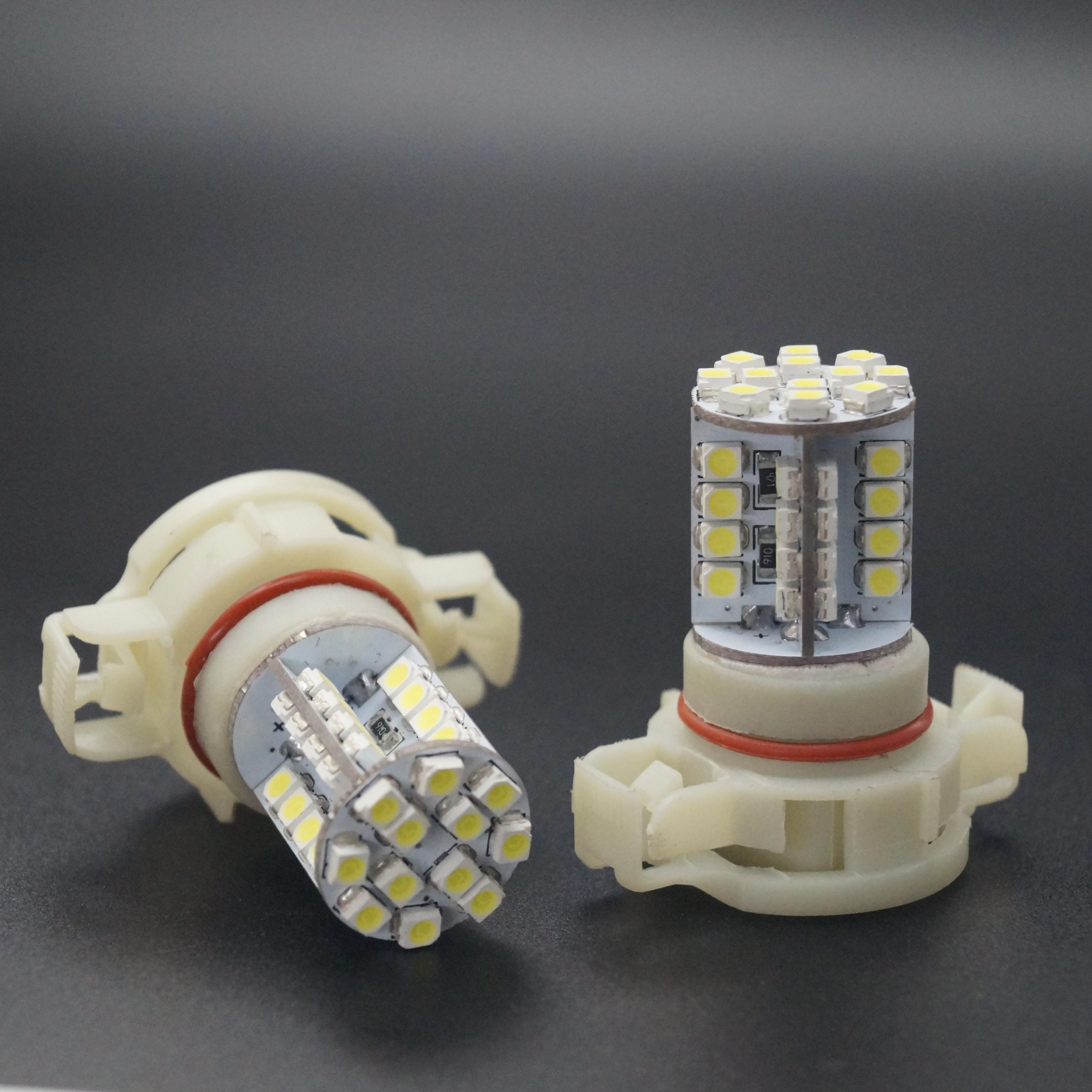

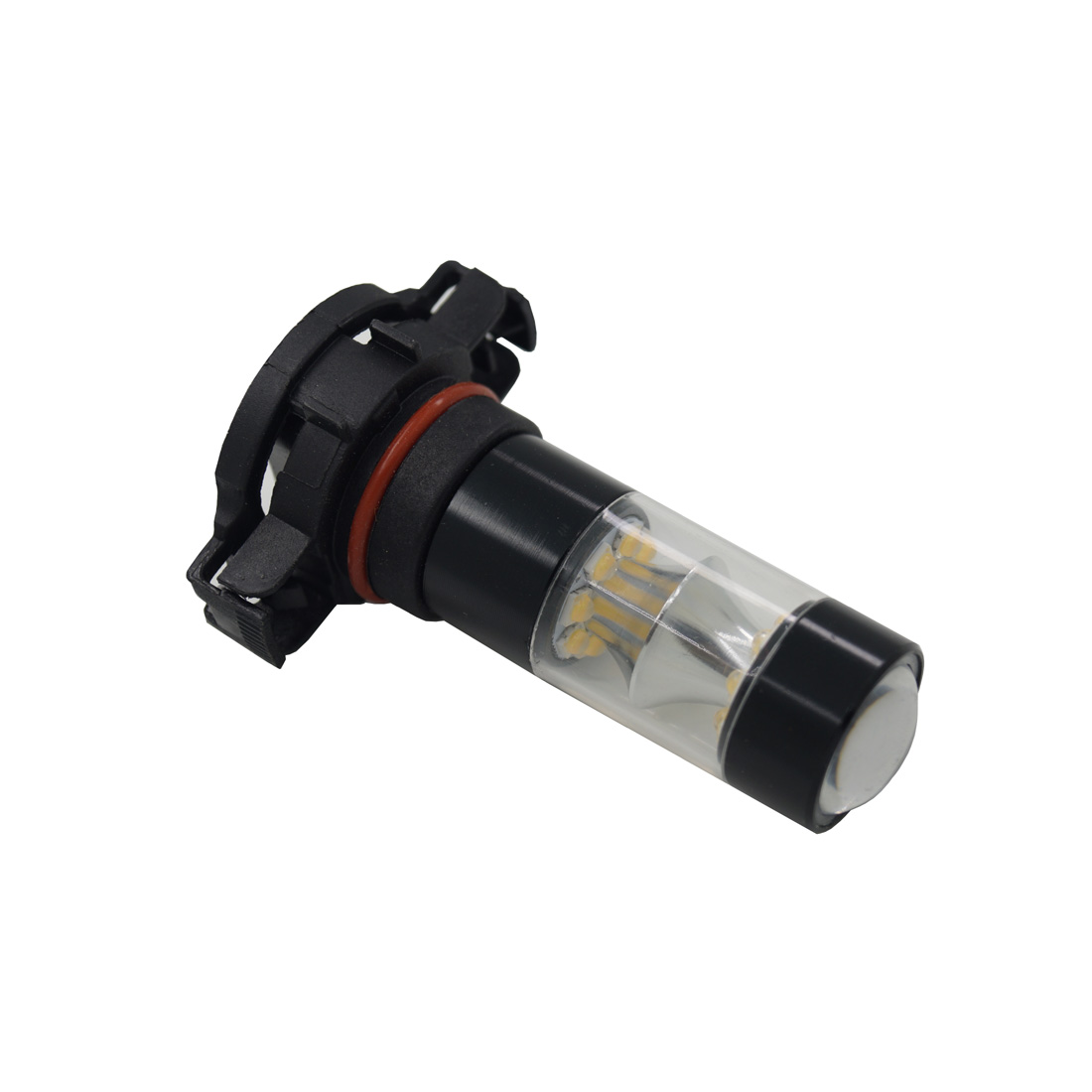

1. Insert the new bulb into the socket. For plug-and-play LED units like those from SEALIGHT, ensure the adapter is correctly oriented.

2. Insert the socket assembly into the housing and rotate clockwise until it locks securely. An audible click or positive stop is often felt.

3. Reconnect the electrical connector, ensuring a firm, click-secured engagement.

4. Beam Pattern Verification: This is a crucial yet often overlooked step. After reconnecting the battery, activate the fog lights. Park the vehicle on level ground facing a wall approximately 10 feet away. The beam pattern should be even, low, and wide. Significant left-right asymmetry or vertical misalignment may indicate an improperly seated bulb or a need for housing aim adjustment via its mounting screws.

4. Beyond Replacement: Systematic Troubleshooting and Optimization

4.1. Common Failure Modes and Solutions

• Condensation in Housing: Indicates a compromised seal. Diagnose by inspecting the housing seal, rear grommet, and lens sealant. Dry thoroughly before resealing or replacing the assembly.

• Hyper-flashing or CANbus Errors (Post-LED Upgrade): LED bulbs have lower electrical draw than halogen bulbs, which can be misinterpreted by the vehicle's Body Control Module (BCM) as a blown bulb. Solution: Install compatible LED CANbus decoders or resistors to simulate the original load.

• Corroded Connectors: Apply electrical contact cleaner and a dielectric grease to prevent future oxidation and ensure stable current flow.

4.2. Technology Comparison: Halogen vs. HID vs. LED

Selecting the correct technology involves权衡 trade-offs:

• Halogen: Low-cost, simple replacement, warm color temperature. Disadvantages include lower luminous efficacy (lumens/watt), shorter lifespan (~500-1,000 hrs), and higher thermal output.

• HID (Xenon): High light output, good efficiency. Disadvantages include complex ballasts, required high-voltage igniters, slower warm-up to full brightness, and potential for excessive glare if not installed in proper projector housings.

• LED (e.g., SEALIGHT): High efficacy, instant-on capability, extremely long lifespan (30,000+ hrs), lower operating temperature, and robust vibration resistance. Modern designs feature integrated cooling (heat sinks/fans) and precise beam patterns compliant with optical housing requirements. They represent the current performance and longevity standard for aftermarket upgrades.

5. Long-Term Maintenance Strategy and Regulatory Compliance

5.1. Proactive Maintenance Schedule

• Monthly: Visual inspection for lens damage, condensation, or physical misalignment.

• Bi-Annually: Thorough cleaning of lens exteriors with a pH-neutral cleaner to remove road film, tar, and oxidation that can reduce light transmission by up to 50%.

• At Every Major Service Interval: Electrical connection check for corrosion and secureness.

5.2. Regulatory and Safety Considerations

• FMVSS 108 / DOT Compliance: In the United States, all replacement lighting equipment must comply with Federal Motor Vehicle Safety Standard 108. Ensure any aftermarket product, especially LED upgrades, is explicitly marked as DOT-compliant.

• Proper Usage: Fog lights are not a substitute for headlights. Jurisdictional laws typically prohibit their use in clear conditions, as they can cause glare for other drivers. Use them only when visibility is substantially reduced by weather.

6. Conclusion: Investing in Optimal Visibility

The fog light system is a specialized safety asset. A disciplined approach to its maintenance—encompassing correct diagnostic procedures, careful installation adhering to technical protocols, and informed selection of lighting technology—directly contributes to safer vehicle operation. Upgrading to advanced, reliable LED systems from manufacturers like SEALIGHT offers a tangible return on investment through superior illumination, reduced long-term replacement costs, and enhanced driver confidence in challenging conditions.

Disclaimer: This guide is intended for informational purposes. Always refer to the vehicle manufacturer's official service manual for specific instructions, torque specifications, and safety warnings. Local regulations regarding lighting modifications must be observed.
