Executive Summary

The reverse lighting system, often categorized under auxiliary vehicle illumination, constitutes a critical and legally mandated safety component with distinct functional requirements separate from brake, tail, or signal lights. Malfunction of this system not only compromises operational capability in low-visibility conditions but also elevates the risk of collisions during backing maneuvers. This white paper presents a rigorous, systematic framework for understanding, diagnosing, and resolving reverse light failure. We will delineate the electro-mechanical operation of the system, provide a methodical fault-isolation protocol encompassing common and complex failure modes, detail corrective procedures, and evaluate technological upgrades for enhanced performance. This guide is engineered for automotive technicians, fleet managers, and advanced vehicle owners seeking to ensure compliance, safety, and optimal functionality through a deep technical understanding of reverse lighting architecture.

1. System Fundamentals: Function, Regulation, and Operational Context

1.1 Functional Purpose and Design Mandate

Reverse lights, or backup lamps, are forward-facing white lights mounted within the rear vehicle lighting cluster. Their activation is mechanically or electronically linked to the vehicle's transmission, engaging exclusively when the gear selector is in the Reverse (R) position. Their purpose is twofold:

• Active Illumination: To project a white light beam rearward, illuminating the ground plane and immediate obstacles directly behind the vehicle. This compensates for the inherent rearward visibility limitations of the driver, particularly under conditions of darkness, inclement weather, or in unlit environments.

• Passive Signaling: To emit a conspicuous white light signal alerting nearby pedestrians, cyclists, and other drivers of the vehicle's intent to travel in a rearward direction. This is especially critical in congested areas like parking lots, loading docks, and construction sites.

1.2 Regulatory Compliance and Color Standards

Globally, vehicle lighting is governed by stringent regulations (e.g., FMVSS 108 in the USA, ECE regulations in Europe). These universally mandate that reverse lights must emit white light. This specific chromaticity is chosen to avoid confusion with red brake/tail lights and amber turn signals, creating a clear, unambiguous visual language. Regional variations exist in the required number of lamps (often one in Europe, two in North America) and minimum photometric output (candlepower). It is imperative to consult local vehicle codes to ensure any maintenance or modification remains compliant.

1.3 Distinctive Differentiation from Brake Lights

While physically proximal within the tail lamp assembly, reverse and brake lights are functionally and chromatically isolated systems:

• Reverse Lights: White light. Activated only by the transmission's reverse gear position. Function: Illumination & Intent Signaling.

• Brake Lights: Red light. Activated by depression of the brake pedal. Function: Deceleration / Stopping Alert.

Confusion between the two can lead to misdiagnosis. A fault in one system is typically independent of the other.

2. Electro-Mechanical Operational Theory

Understanding the system's workflow is prerequisite to effective diagnosis. A typical circuit follows this sequence:

1. Activation Input: The driver selects "Reverse." This mechanically or electronically changes the state of the Transmission Range Switch (also called the neutral safety switch or backup lamp switch).

2. Signal Transmission: The closed switch completes a circuit, sending a 12V signal to the vehicle's Body Control Module (BCM) or directly to the lighting circuit.

3. Circuit Completion: Power flows from the battery, through a dedicated fuse in the vehicle's fuse box, to the switch, and then to the reverse lamp sockets.

4. Load Activation: The bulbs (or LED assemblies) illuminate upon receiving power. The circuit is grounded (GND) at a designated chassis point.

5. Deactivation: Shifting out of reverse opens the switch, breaking the circuit and extinguishing the lights.

3. Systematic Diagnostic Protocol for Failure Modes

A logical, stepwise diagnostic approach is essential to efficiently isolate the point of failure. Begin with the simplest, most probable causes.

Phase 1: Preliminary Verification & Visual Inspection

• Step A: Confirm Failure. Perform an operational check as described in the FAQ. Note if both lights have failed or only one.

• Step B: Bulb Integrity Check. For single-light failure, the bulb is the primary suspect. Remove the bulb and inspect the filament for breakage (halogen) or signs of thermal stress/water intrusion (LED). For dual-filament bulbs (e.g., 7443 used in combined brake/tail functions), ensure the correct filament is designated for reverse.

• Step C: Fuse Inspection. Locate the reverse light fuse in the owner's manual fuse diagram. Use a test light or multimeter to check for continuity. A visual inspection may not reveal a subtly blown fuse.

Phase 2: Electrical Circuit Analysis (If Bulb and Fuse are Good)

• Step D: Power Probe Test at Socket. With the ignition ON and transmission in Reverse, use a multimeter or test light to probe the socket's power terminal. The presence of 12V indicates the problem lies downstream (bad bulb, poor socket contact, or ground). Absence of 12V indicates a problem upstream.

• Step E: Switch Function Test. Locate the transmission range switch. Disconnect its electrical connector. Using a multimeter in continuity/resistance mode, check for continuity between the designated backup lamp switch terminals only when the gear selector is in Reverse. No continuity in Reverse indicates a faulty switch. (Caution: Some vehicles integrate this switch with complex sensor arrays; consult service data).

• Step F: Wiring Harness Integrity Check. Inspect the wiring leading from the switch to the fuse box and from the fuse box to the lamp sockets for visible damage, chafing, or corrosion. Check for rodent damage. A multimeter can be used for voltage drop tests along the wire to locate high-resistance points.

Phase 3: Ground Circuit Verification

• Step G: Ground Path Test. A faulty ground is a common culprit. Locate the ground point for the rear lights (often a stud or bolt on the chassis behind interior trim). Ensure the connection is clean, tight, and free of rust. Perform a voltage drop test between the bulb socket's ground terminal and the battery's negative post (with circuit loaded) to confirm a clean ground path (< 0.1V drop is ideal).

4. Corrective Procedures and Component Replacement

4.1 Bulb Replacement: Ensure the new bulb matches the old bulb's type (e.g., 921, W16W for LEDs), wattage, and base. Handle halogen bulbs with gloves to prevent oil contamination. For LED upgrades, verify canbus compatibility if the vehicle has a bulb-out monitoring system.

4.2 Fuse Replacement: Always replace with a fuse of identical amperage rating. The cause of the blown fuse (e.g., short circuit) must be identified and rectified to prevent recurrence.

4.3 Switch Replacement: This often requires vehicle elevation and access to the transmission housing. Electrical connections must be clean and secure. Calibration or relearning procedures may be required for electronic range sensors on modern vehicles.

4.4 Wiring Repair: Use solder and heat-shrink tubing or automotive-grade connectors for permanent, weatherproof repairs. Replace entire wire sections if corrosion is extensive.

5. Proactive Maintenance and Performance Optimization

5.1 Scheduled Maintenance Regimen

• Monthly: Operational check (light functionality).

• Quarterly: Visual inspection of lens cleanliness and bulb condition.

• Biannually: Inspection of wiring harness integrity at accessible points and ground connection security.

• Annually: Comprehensive electrical check of circuit voltage and ground integrity.

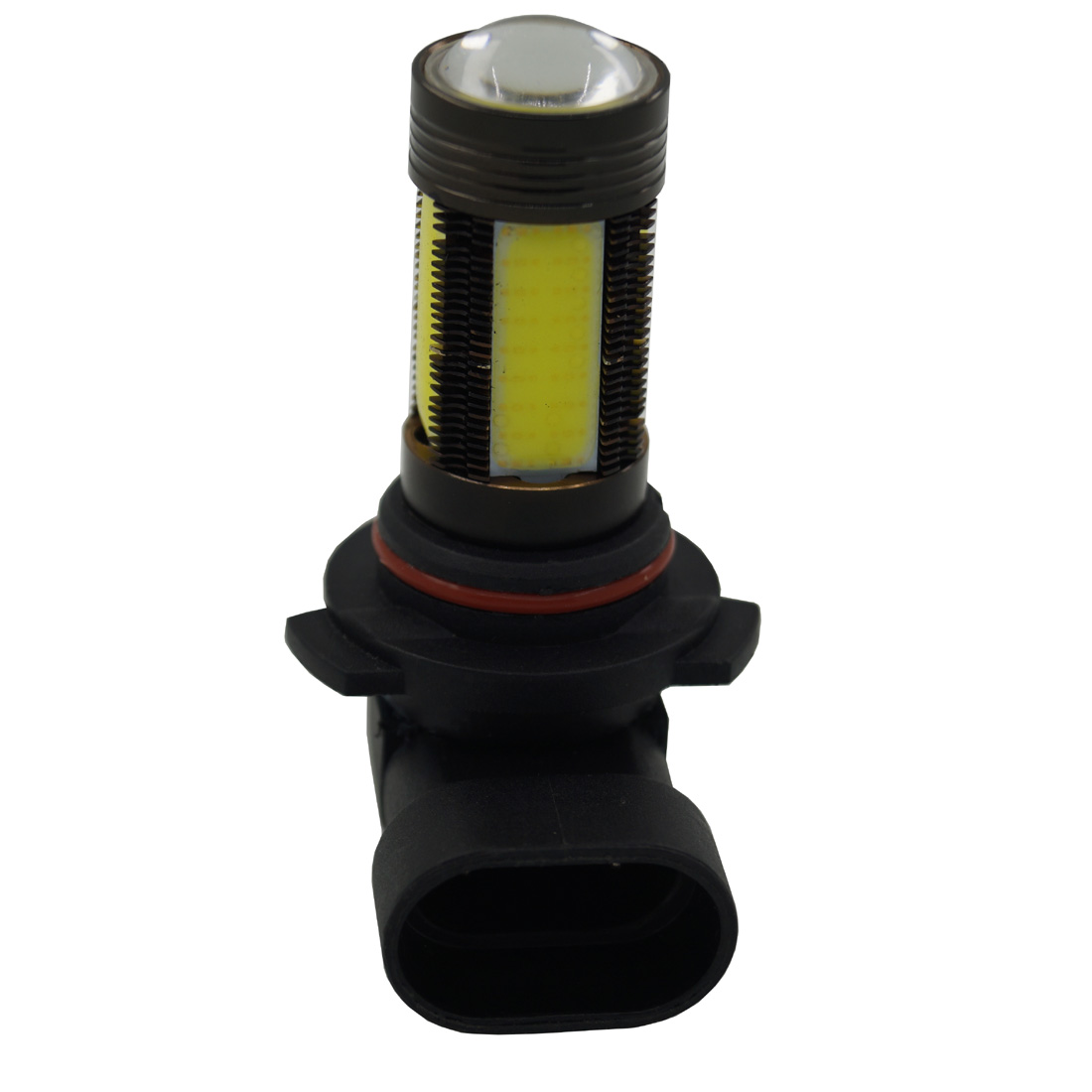

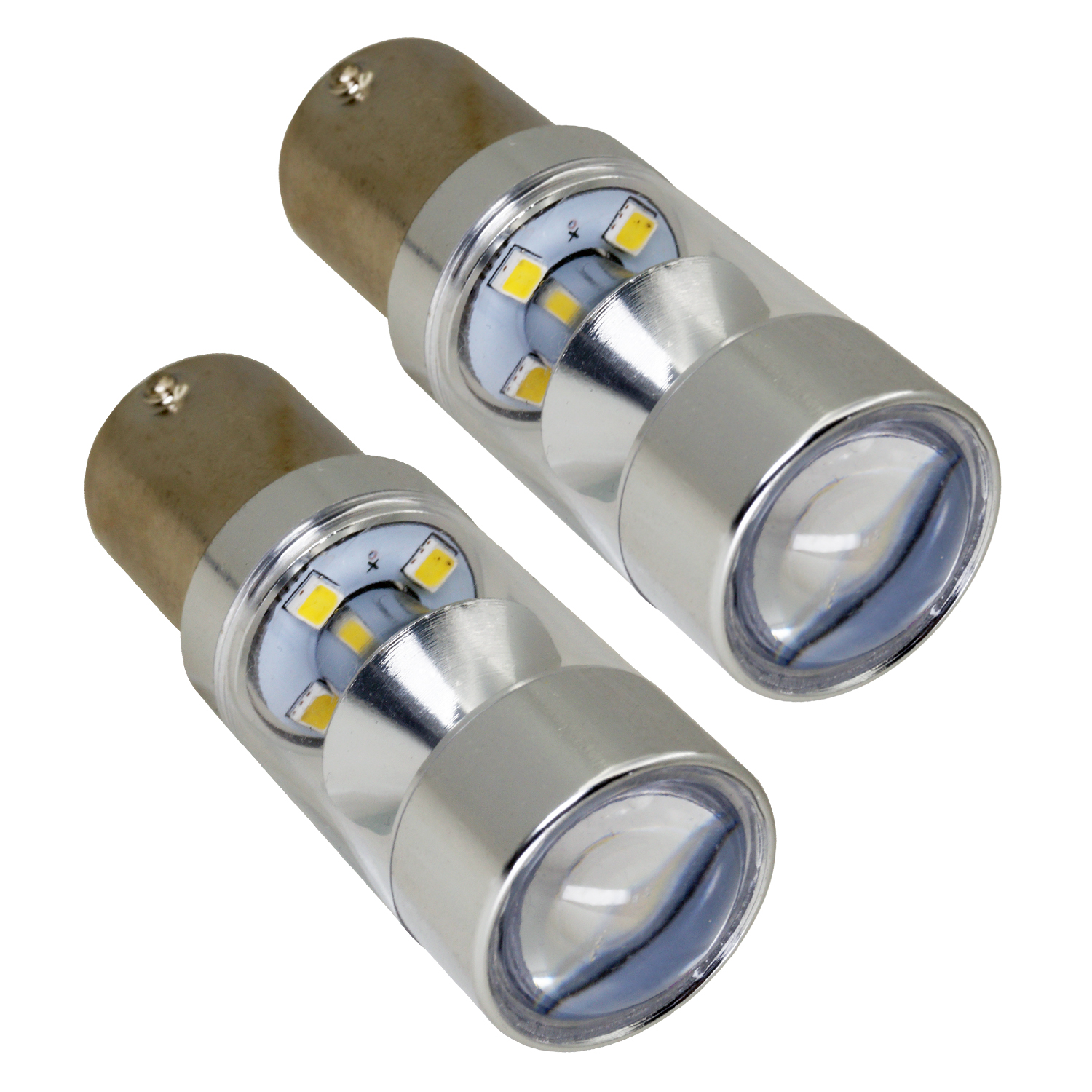

5.2 Performance Enhancement through LED Retrofit

Upgrading from halogen to LED reverse lights offers measurable benefits:

• Increased Luminous Efficacy: LEDs produce significantly more usable light (lumens) per watt, dramatically improving rearward illumination.

• Superior Longevity: LED lifespans (often 30,000+ hours) far exceed halogen bulbs, reducing replacement frequency.

• Enhanced Durability: Solid-state construction is more resistant to vibration failure.

• Considerations: Must select LEDs with a proper beam pattern that illuminates the ground effectively, not just create glare. Ensure models from reputable manufacturers like Bowng are designed for optimal heat dissipation and comply with regulatory photometric standards.

5.3 Integration with Advanced Safety Systems

Modern vehicles often integrate the reverse light circuit with higher-level driver assistance systems:

• Rear-View Camera Activation: The reverse signal triggers the camera display.

• Rear Cross-Traffic Alert (RCTA) & Automatic Braking: These systems are often armed by the reverse signal. A faulty reverse light circuit may inhibit the functionality of these critical safety features.

6. Conclusion: Elevating a Fundamental Safety System

The reverse lighting system, while mechanically simple, plays an indispensable role in safe vehicle operation. Moving beyond treating its failure as a simple "bulb change," and instead applying a systematic diagnostic methodology, ensures reliable and lasting repairs. Furthermore, strategically upgrading to advanced LED technology and integrating proper maintenance into a vehicle care schedule transforms this basic function into a high-performance safety asset. By adhering to the technical principles and procedures outlined in this document, professionals and enthusiasts alike can guarantee this system performs with the reliability and effectiveness that modern driving demands.

Appendix: Technical FAQ & Advanced Diagnostics

Q1: Why do some vehicles have only one reverse light, and is adding a second legal?

A1: This is primarily a regulatory distinction. European ECE regulations historically permitted a single rear fog light and reverse light, while U.S. FMVSS standards typically require two. Adding a second reverse light to a vehicle designed for one may not be legal if it alters the vehicle from its certified configuration and could cause glare or confusion. Always verify with local regulations before modification.

Q2: How can I diagnose an intermittent reverse light failure that seems random?

A2: Intermittent failures are characteristic of a poor connection. The diagnostic focus should be on:

1. The Transmission Range Switch Connector: Vibration can cause a poor connection. Inspect for loose pins or corrosion.

2. Wiring Harness Flex Points: Especially where the harness passes from the body into the liftgate or trunk lid. Repeated flexing can break wires internally.

3. A Poor Ground Connection: Corrosion or looseness that makes/breaks contact with vehicle movement.

Diagnosis involves manipulating these components while the system is under load (in Reverse) and monitoring for change.

Q3: My vehicle has a canbus system. Will installing LED reverse lights cause a "bulb out" warning on the dashboard?

A3: Potentially, yes. If the vehicle monitors the reverse light circuit for current draw (like it often does for brake/turn signals), the lower current of an LED may be interpreted as a fault. The solution is to install CANbus-compatible LED bulbs from brands like Bowng, which incorporate internal resistors or active circuitry to simulate the expected electrical load, preventing false error codes.

Q4: After repairing my reverse lights, my rear-view camera or parking sensors are still not working. What is the link?

A4: The reverse light circuit is frequently used as the "trigger" or "enable" signal for these auxiliary systems. Even if the bulbs now light, if the voltage signal reaching the camera or sensor module is incorrect (e.g., due to a voltage drop from a remaining poor connection), the module may not activate. Use a multimeter to verify the trigger wire at the camera/sensor module receives a clean, full-system voltage (e.g., >11.5V) when in Reverse.
