Specification:

Executive Summary

A palm-sized powerhouse that turns 0.17 W into 360° amber visibility. Ultrasonically welded IP67 housing, 300 000-hour LED life, and universal 12 V compatibility make this side marker light the go-to choice for OEMs and aftermarket distributors who refuse to compromise on safety or cost of ownership.

Key Selling Points

• Zero-Maintenance Reliability – 3 Super-Flux LEDs rated for 300 000 h MTBF; no filament, no glass, no service calls.

• Certified Ingress Protection – IP67 validated by 30-minute submersion test; survives pressure-wash, salt-spray and desert dust.

• Energy Efficiency – 0.17 W draw reduces alternator load and CO₂ footprint; fleet ROI calculable from day one.

• Tool-Free Install – 2-wire pigtail, adhesive pad and stainless screws included; mounts left, right, front, rear or roof in < 2 minutes.

• Global Compliance – CE, RoHS, UV-stabilised PC lens meets DOT side-marker photometry when properly aimed.

Quality & Manufacturing

• Three-Stage QC: incoming components → 100 % burn-in (5 min) → final photometric scan.

• Thermal shock tested: ‑40 °C ↔ +75 °C, 200 cycles, zero LED failure.

• 12-month replacement warranty – freight prepaid on verified defects.

Technical Specifications

LED Qty: 3 × Super-Flux amber LEDs

Voltage: 12 V DC (±10 %)

Power: 0.17 W

Luminous Colour: Amber, clear lens

Housing: UV-stabilised PC lens + ABS base, ultrasonic weld

Dimensions: 106 × 34 mm

IP Rating: IP67 (dust-tight, water-immersion to 1 m)

Operating Temp: ‑40 °C to +75 °C

Lifespan: ≥ 300 000 h

Applications: Side marker, clearance, identification, step, courtesy, marine navigation, trailer marker

Detail:

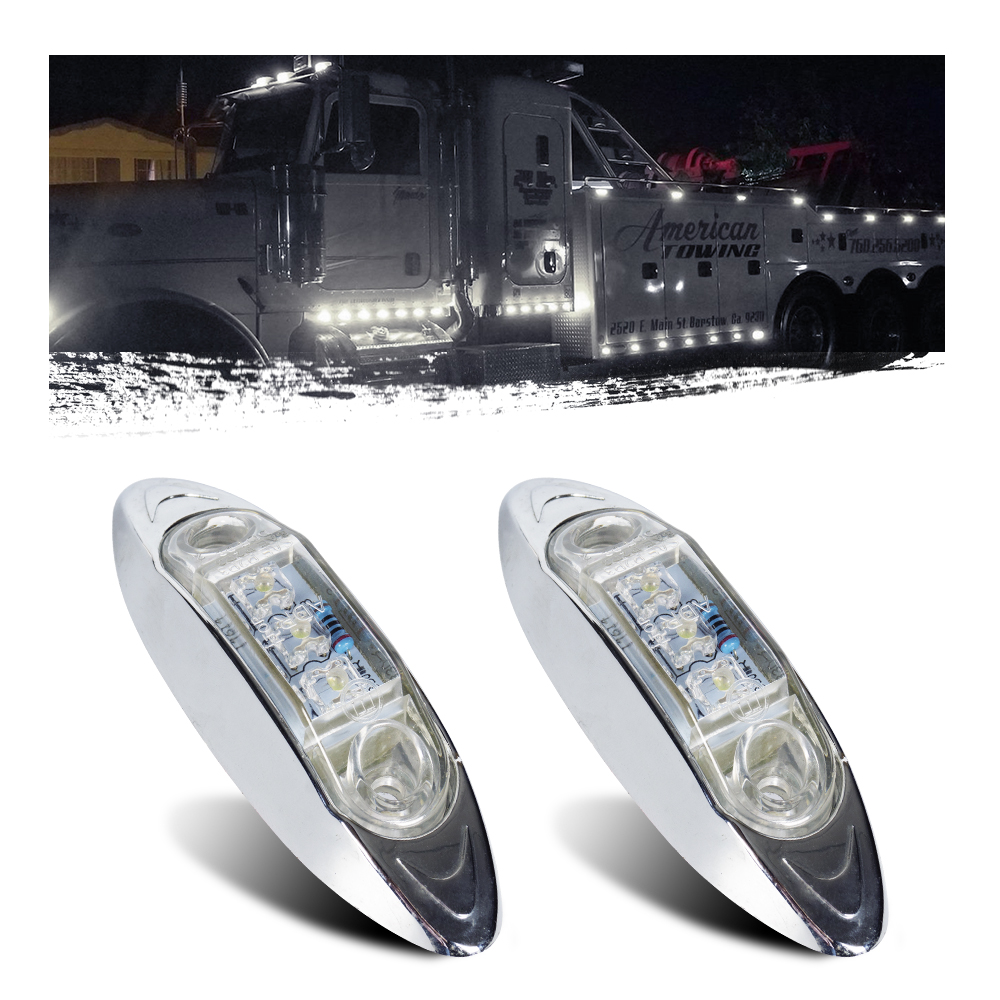

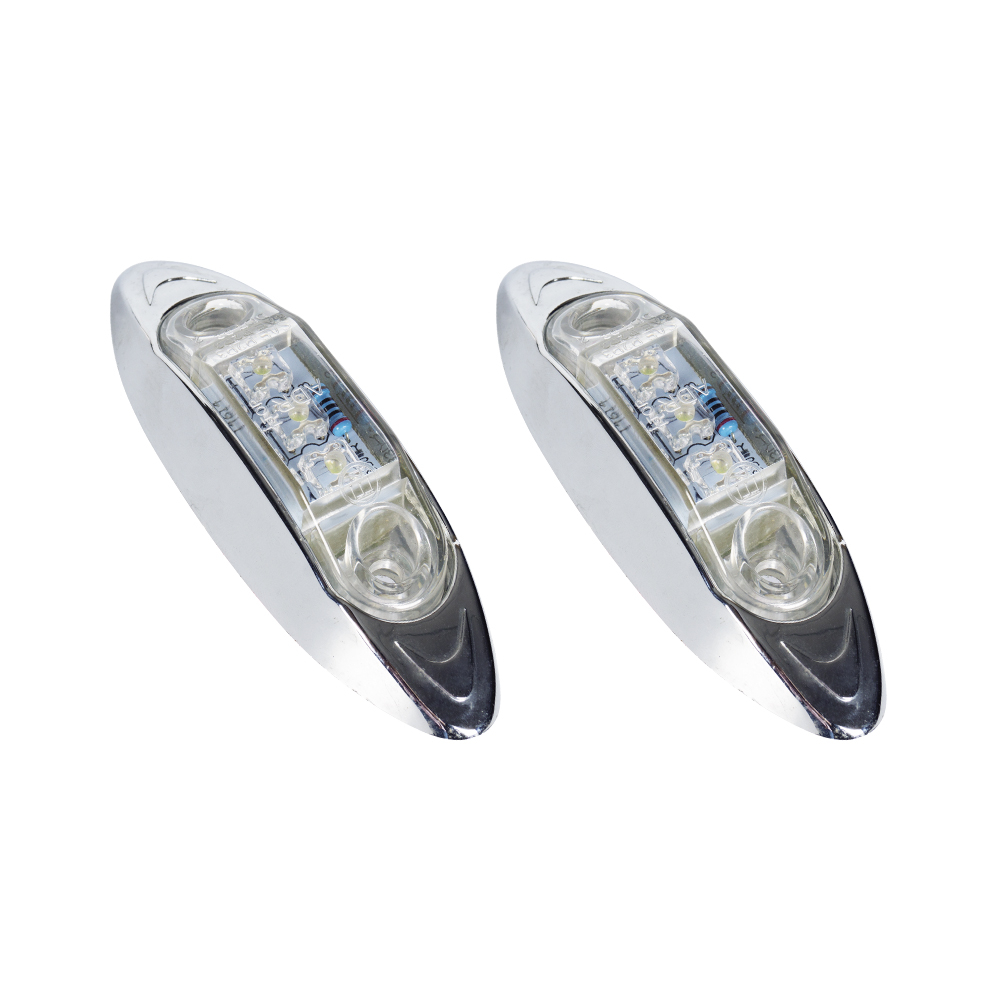

LED white color marker light,other colors are also available.

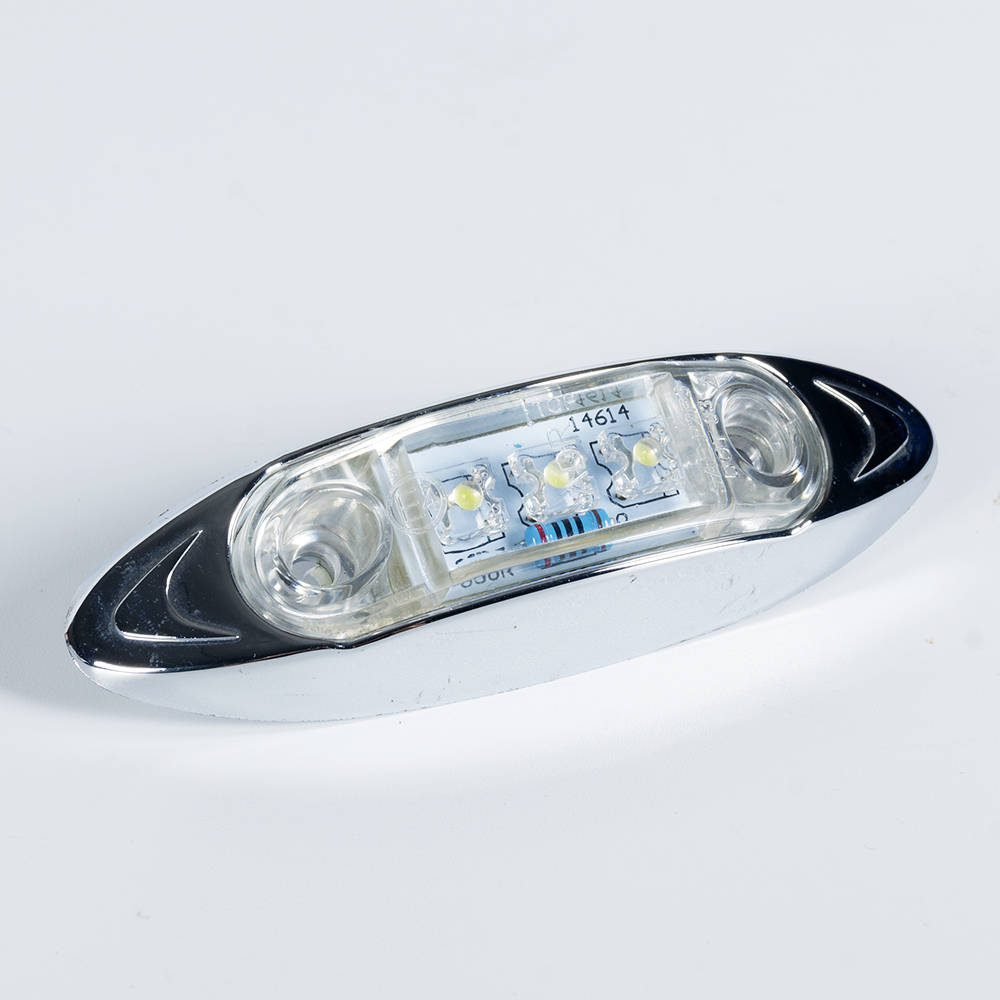

High transmittance is PMMA material+Chrome Bezel shell ,the bottom shell is ABS material.

The front and rear shells are separate and sealed by special technology.

3pcs super bright leds,dependable performance increases the visibility of your vehicle on the road.

With the IP65 waterproof design,will prevent from and sand,water ,dirt,snow or dust.

Characteristics:

1. PRO-environment, energy conservation;

2. Shockproof, impact-proof;

3. Pure color, beautiful appearance;

4. Longer life, The average life expectancy is 50000 hours;

5. High speed reaction, it can shine in microsecond;

6. High quality of light ray, no radiation

7. Easy for installation.

RFQ:

Q：Are the bright enough for daylight ?

A：As LED's they have the ability to be seen well in daylight, but not for the sake of navigation (i.e, going through a tunnel, etc.).

Q：Can the marker light support 24 volts?

A：Generally is 12V.But if you need 24V,pls contact us that we can show you some item to make it be 24V.

Q:If the lens color fading ?

A: Don’t worry,it doesn’t fade during the warranty.

Q:Which wire gauge is used to connect to the trailer?

A:should be standard 16 or 18 gauge.

Q:Is the lens have a reflector?

A:Some lights will with reflector.

Q:How many wire of the led marker light?

A:According to different function ,it will be 2~4 wires.Normally it will have 2 wires.
